Belts Backings
Description

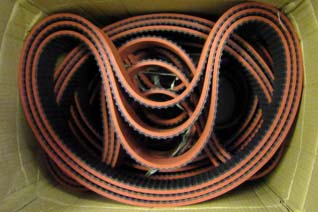

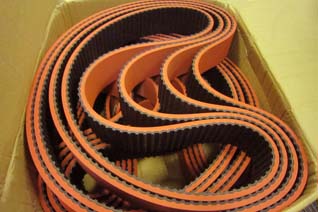

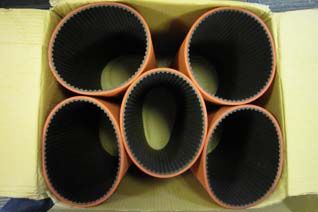

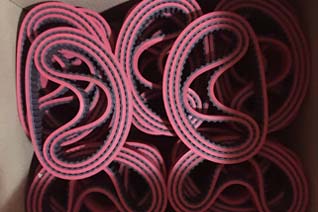

The unique chemical and mechanical characteristics of rubber belts together with the possibility of a wide variety of backings in different materials make HIT belts ideal for all conveying applications where synchronization is required.

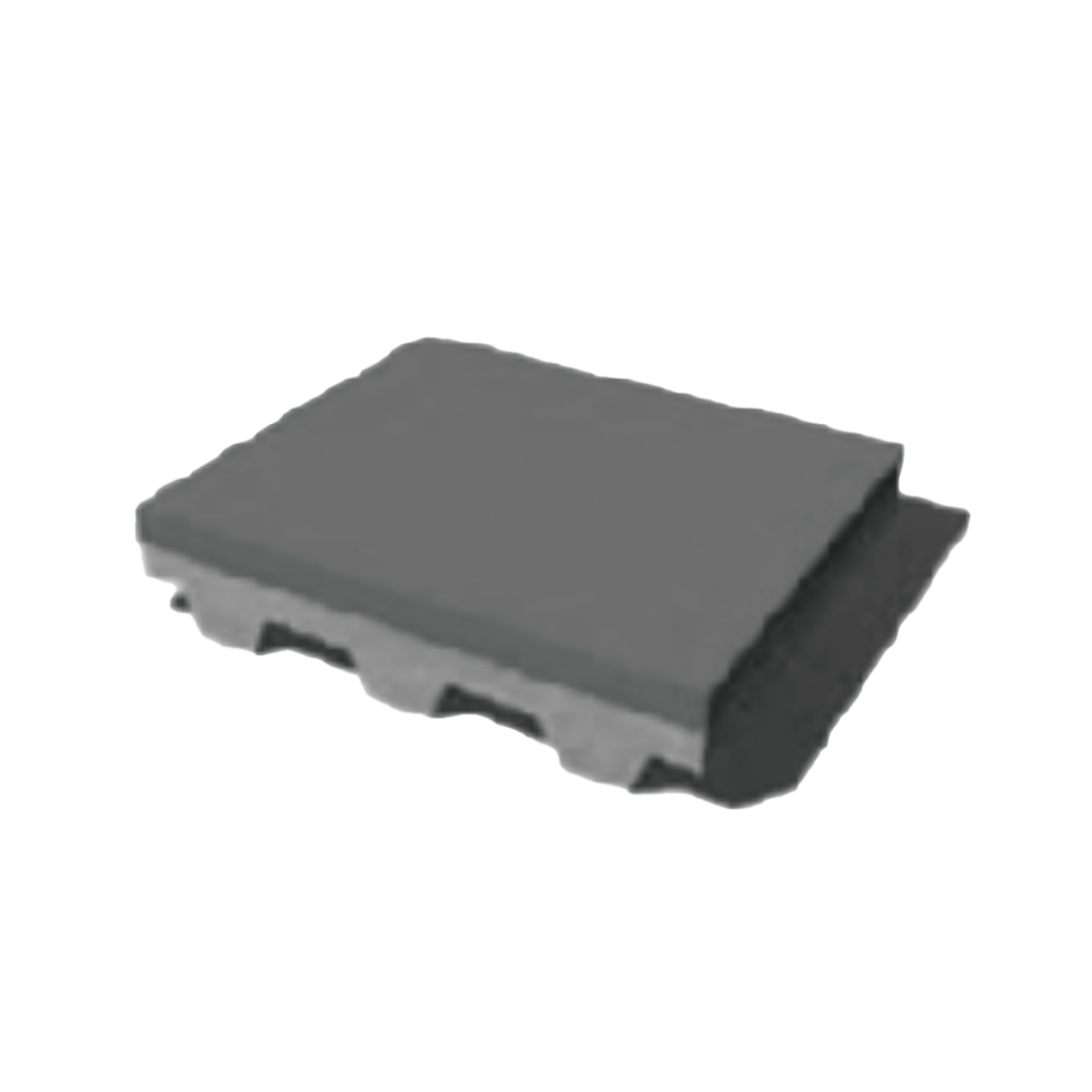

Belts Backings
| Type | HIT Product Range | Rubber Thickness | Rubber Color |
| MXL | 400MXL – 650MXL | 3mm – 6mm | Red / Green / Black |
| XL | 300XL – 648XL | 3mm – 6mm | Red / Green / Black |
| L | 300L – 640L | 3mm – 6mm | Red / Green / Black |
| H | 300H – 650H | 3mm – 6mm | Red / Green / Black |
| XH | 420XH – 630XH | 3mm – 6mm | Red / Green / Black |
| H2M | 2M 300 – 2M 600 | 3mm – 6mm | Red / Green / Black |
| H3M | 3M 300 – 3M 648 | 3mm – 6mm | Red / Green / Black |
| H5M | 5M 300 – 5M 650 | 3mm – 6mm | Red / Green / Black |
| H8M | 8M 320 – 8M 640 | 3mm – 6mm | Red / Green / Black |
| S2M | S2M 300 – S2M 630 | 3mm – 6mm | Red / Green / Black |
| S3M | S3M 300 – S3M 645 | 3mm – 6mm | Red / Green / Black |
| S4.5M | S4.5M 306 – S4.5M 567 | 3mm – 6mm | Red / Green / Black |
| S5M | S5M 300 – S5M 650 | 3mm – 6mm | Red / Green / Black |
| S8M | S8M 376 – S8M 640 | 3mm – 6mm | Red / Green / Black |
| P3M | P3M 300 – P3M 600 | 3mm – 6mm | Red / Green / Black |
| P5M | P5M 325 – P5M 650 | 3mm – 6mm | Red / Green / Black |
| P8M | P8M 480 – P8M 640 | 3mm – 6mm | Red / Green / Black |
| T2.5M | T2.5 305 – T2.5 650 | 3mm – 6mm | Red / Green / Black |
| T5M | T5 300 – T5 635 | 3mm – 6mm | Red / Green / Black |
| T10M | T10 340 – T10 650 | 3mm – 6mm | Red / Green / Black |
| The thickness of rubber is from 3mm to 6mm. | |||
| Type | HIT Product Range | Rubber Thickness | Rubber Color |
| MXL | 6650MXL – 23100MXL | 8mm | Red / Green / Black |
| XL | 660XL – 1552XL | 8mm | Red / Green / Black |
| L | 653L – 2093L | 8mm | Red / Green / Black |
| H | 660H – 2100H | 8mm | Red / Green / Black |
| XH | 700XH – 1750XH | 8mm | Red / Green / Black |
| XXH | 700XXH – 1800XXH | 8mm | Red / Green / Black |
| H2M | 2M 622 – 2M 3000 | 8mm | Red / Green / Black |
| H3M | 3M 654 – 3M 5100 | 8mm | Red / Green / Black |
| H5M | 5M 655 – 5M 5300 | 8mm | Red / Green / Black |
| H8M | 8M 656 – 8M 5120 | 8mm | Red / Green / Black |
| H14M | 14M 784 – 14M 4956 | 8mm | Red / Green / Black |
| H20M | 20M 3400 – 20M 4900 | 8mm | Red / Green / Black |
| S2M | S2M 656 – S2M 3828 | 8mm | Red / Green / Black |
| S3M | S3M 657 – S3M 4500 | 8mm | Red / Green / Black |
| S4.5M | S4.5M 653 – S4.5M 1031 | 8mm | Red / Green / Black |
| S5M | S5M 655 – S5M 3280 | 8mm | Red / Green / Black |
| S8M | S8M 656 – 5320 | 8mm | Red / Green / Black |
| S14M | S14M 714 – S14M 4508 | 8mm | Red / Green / Black |
| P5M | P5M 800 – P5M 3680 | 8mm | Red / Green / Black |
| P8M | P8M 800 – P8M 4600 | 8mm | Red / Green / Black |
| P14M | P14M 966 – P14M 3360 | 8mm | Red / Green / Black |
| T2.5M | T2.5 780 – T2.5 2000 | 8mm | Red / Green / Black |
| T5M | T5 660 – T5 2280 | 8mm | Red / Green / Black |
| T10M | T10 660 – T10 4650 | 8mm | Red / Green / Black |
| T20M | T20 1080 – T20 1680 | 8mm | Red / Green / Black |
| The maximum thickness of rubber is 8mm. | |||
